Manual Tow LINE Floor Conveyor System

Manual Tow LINE Floor Conveyor System Specification

Thickness
6-10 mm (platform thickness, customizable)

Features
Robust design, easy installation, low maintenance, modular sections

Surface Finish
Powder-coated (blue color as shown)

Power Source
Manual (operator powered)

Material
Heavy-duty mild steel platform with adjustable supports

Type
Manual Tow Line Floor Conveyor System

Structure
Modular steel platform on steel rail

Vertical Conveyor
Other

Pneumatic Conveyor
Other

Resistant Feature
Other

Load Capacity
1 Tonne

Voltage
230 kilovolt (kV)

Power
Not required (manual operation)

Speed
Operator controlled, up to 15 m/min (manual)

Usage & Applications
Assembly lines, automotive manufacturing, material transfer in industrial shops

Installation
On-site assembly and commissioning available

Platform Size
Customizable (standard: 1.2 m x 1.2 m per trolley)

Wheel Type
Heavy-duty, adjustable

Towing Method
Manual push/pull or can be adapted for mechanized tow

Environment
Suitable for indoor industrial environments

Track Type
Steel embedded floor-mounted rail

Customization
Available in various sizes, colors, and load capacities

Section Length
Custom as per application requirement

Adjustability
Trolley leveling supports for uneven floors

Noise Level
Low noise operation

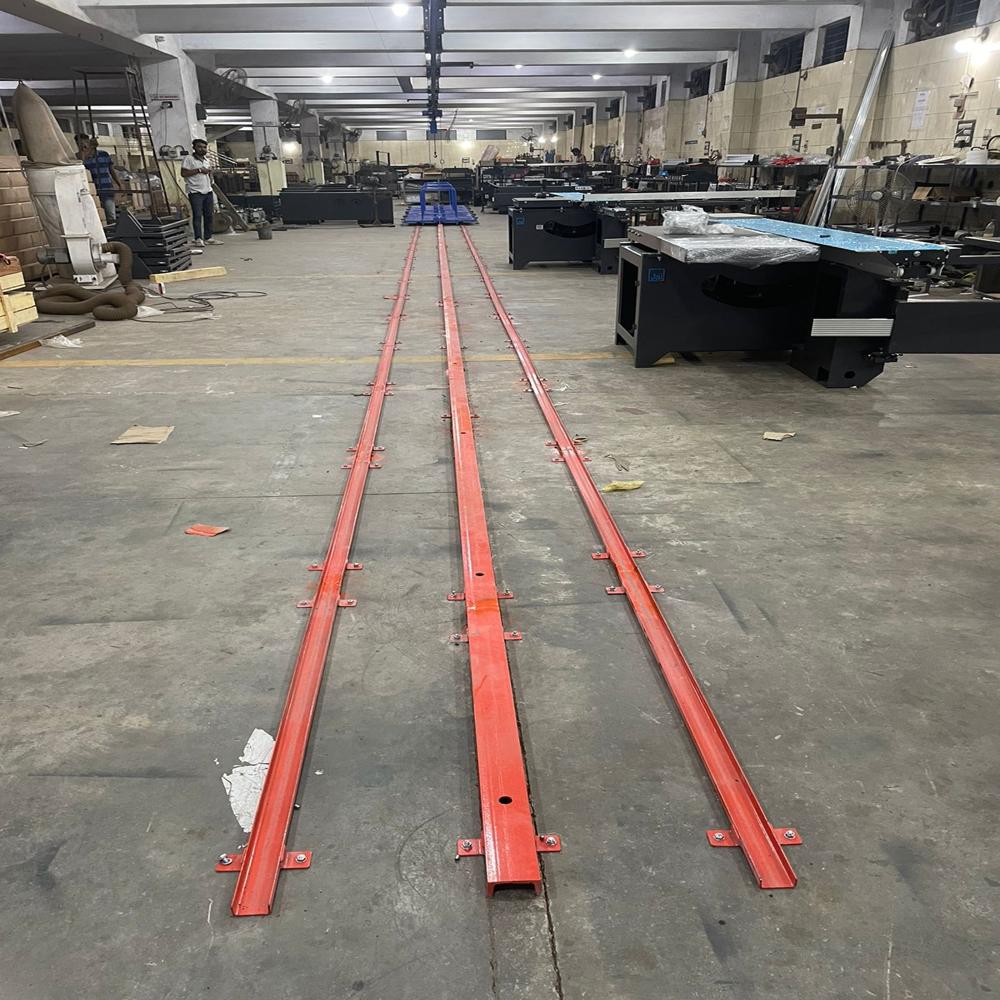

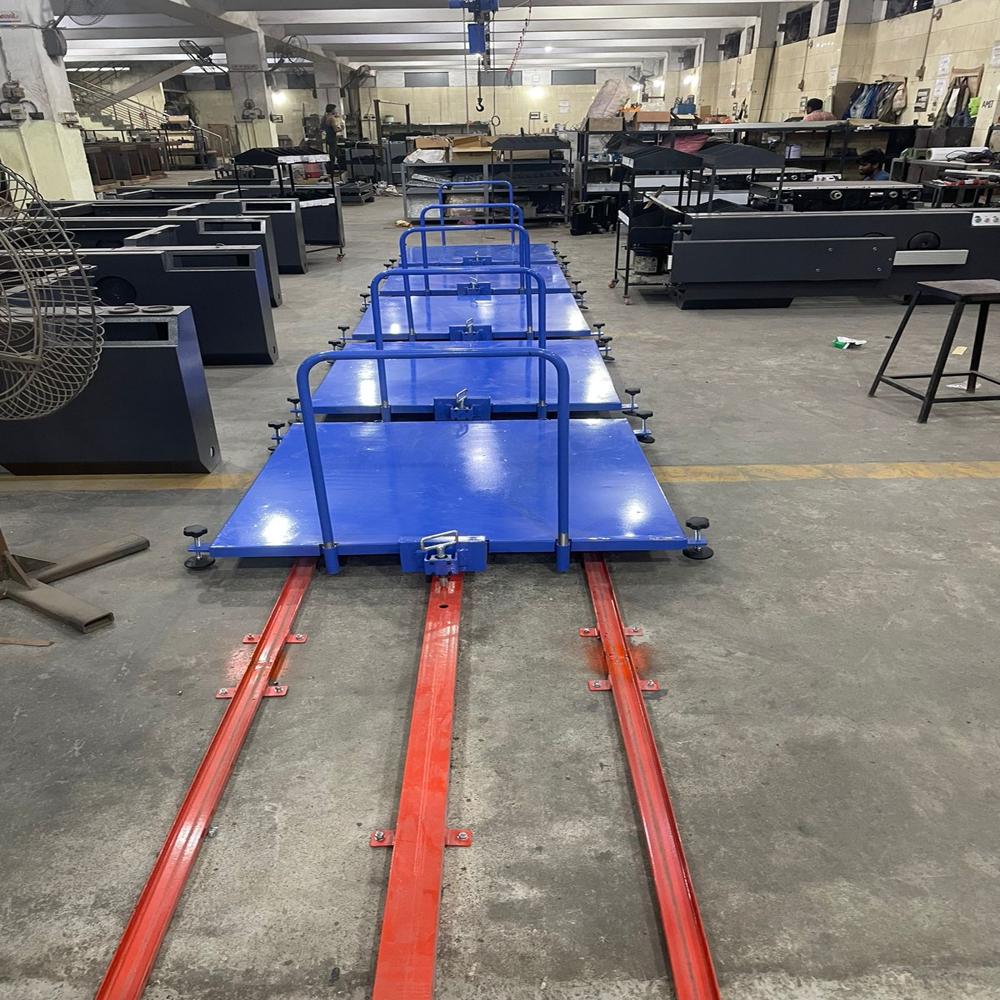

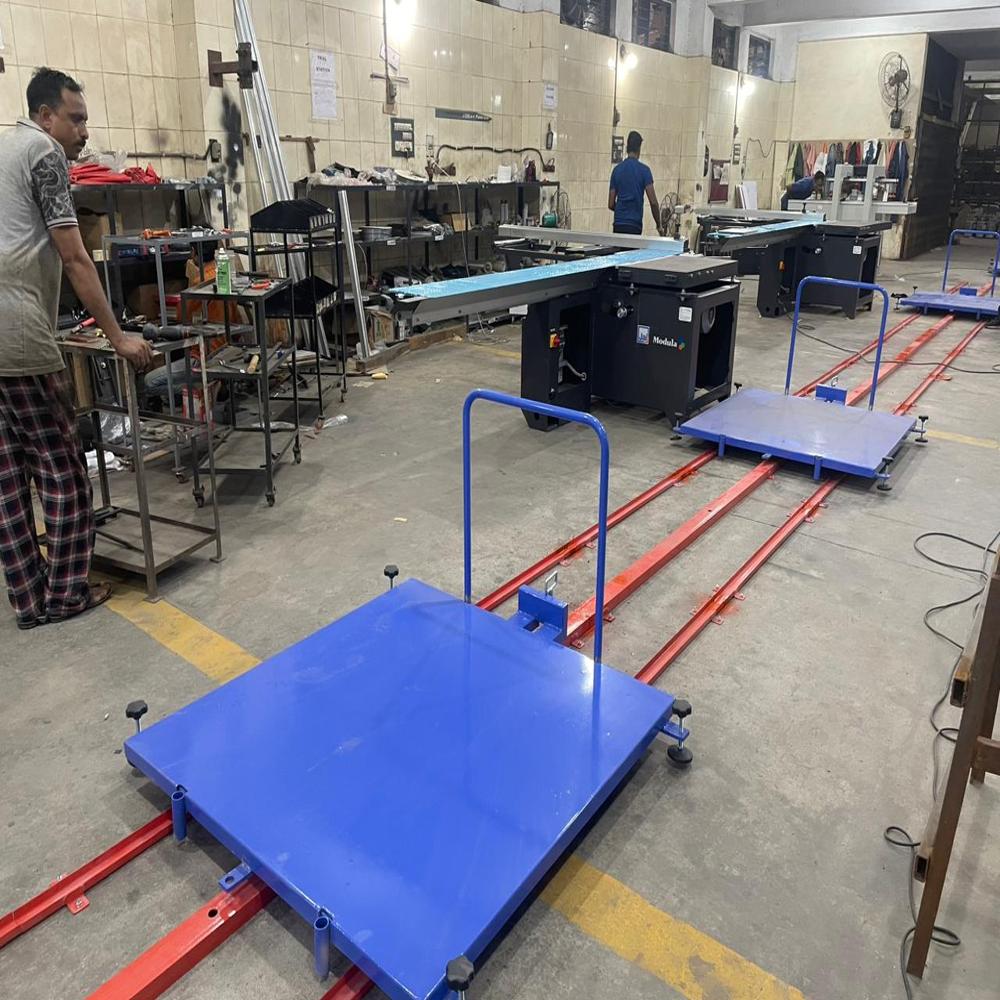

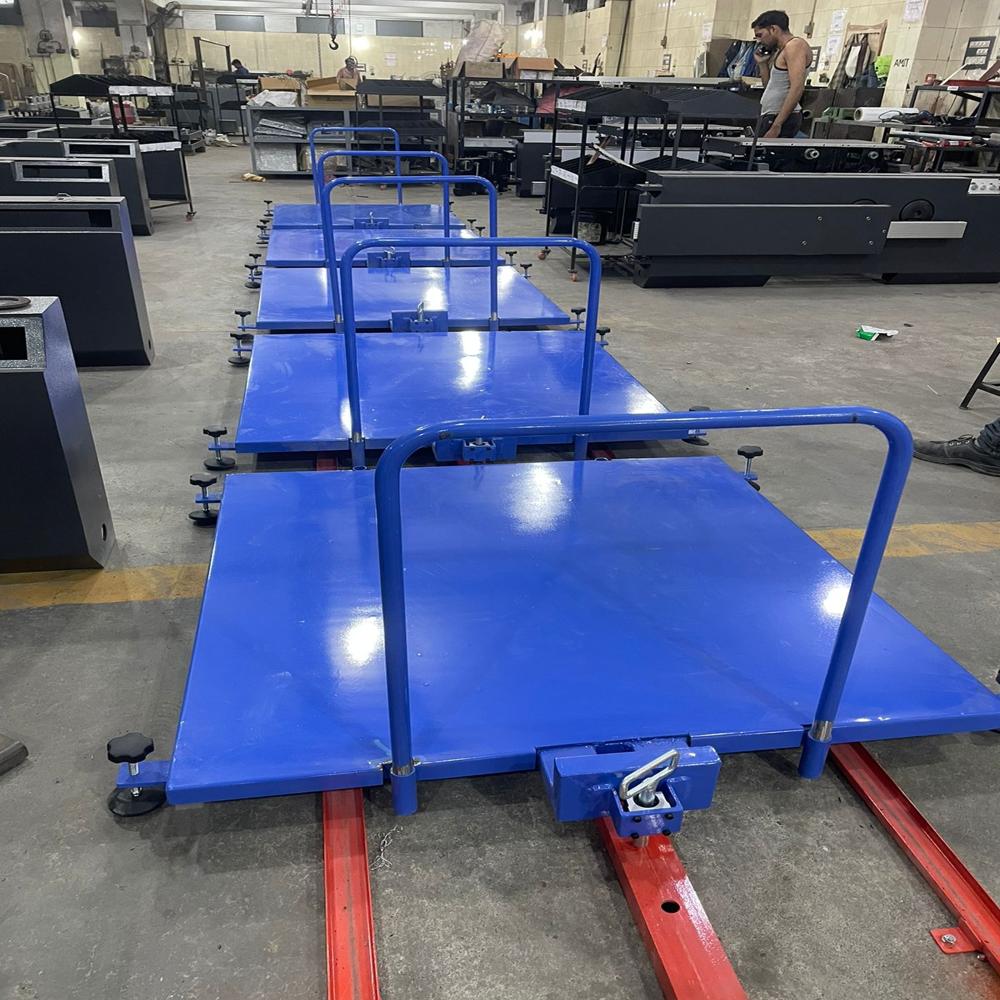

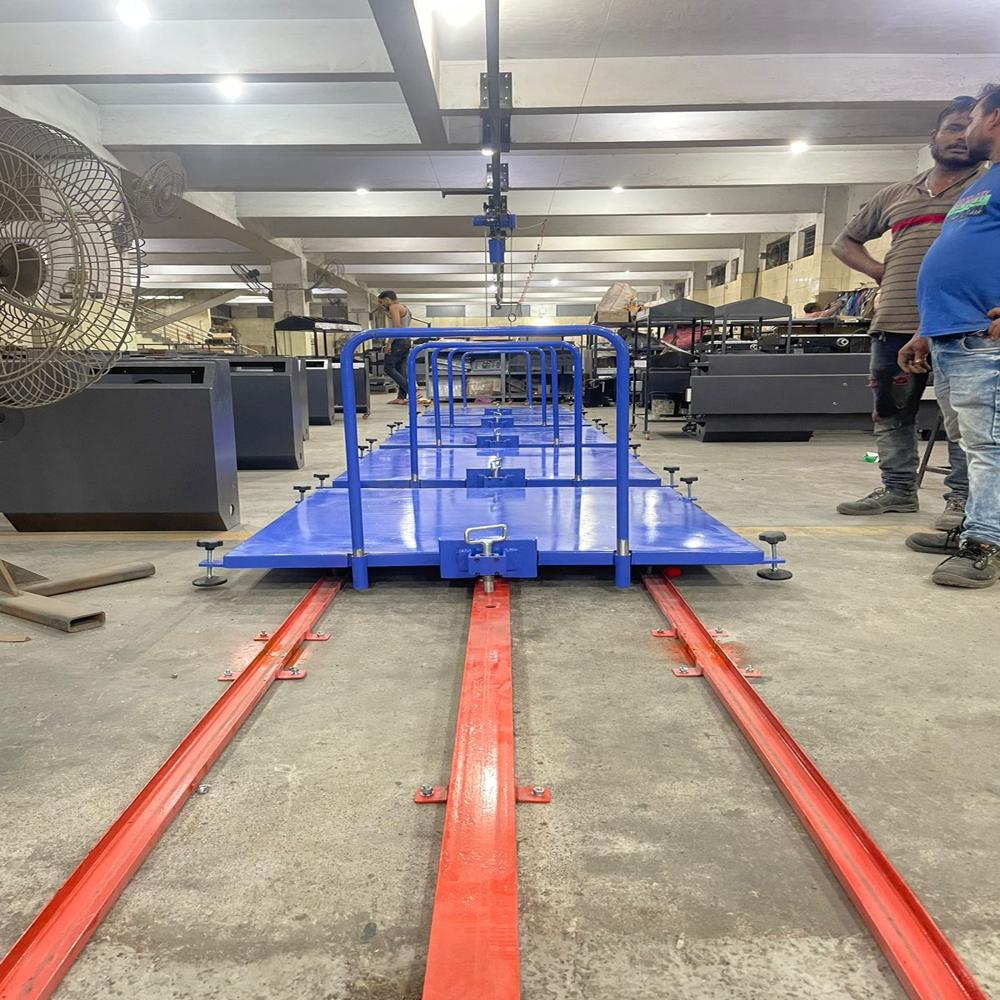

Manual Tow LINE Floor Conveyor System About

A Manual Tow Line Floor Conveyor System is a cost-effective material handling solution designed to transport products, components, pallets, or work carriers between different workstations within a manufacturing or assembly facility. The system operates using manually pushed or pulled trolleys that are guided by a floor-mounted tow line or track, ensuring smooth, controlled, and efficient movement of materials.

This conveyor system is ideal for assembly lines, warehouses, automotive plants, fabrication units, and industrial production facilities where flexible and reliable material transportation is required without the need for powered conveyors.

Key Features

Manual operation with low maintenance requirements
Heavy-duty steel construction for long service life
Smooth and guided movement along the floor track
Suitable for transporting pallets, fixtures, and work carriers
Modular design for easy installation and future expansion
Improves workflow and reduces manual handling effort
Safe, reliable, and energy-efficient operation
Customizable track layout to suit plant requirements

Applications

Automotive assembly lines
Manufacturing plants
Warehouse material movement
Industrial production lines
Fabrication and engineering workshops
Packaging and logistics facilities

Benefits

Increases material handling efficiency
Reduces operator fatigue
Minimizes product damage during transportation
Optimizes floor space utilization
Low operating and maintenance costs
Enhances workplace safety and productivity

The Manual Tow Line Floor Conveyor System provides a practical and economical solution for continuous material flow, helping industries improve operational efficiency while maintaining flexibility in production processes.

Customizable and Robust Construction

Built from heavy-duty mild steel with a powder-coated finish, the Manual Tow LINE Floor Conveyor System features steel-embedded tracks and modular platforms adjustable in size and thickness. Each trolley includes leveling supports to maintain stability over uneven surfaces, ensuring reliable performance in diverse indoor industrial settings.

Flexible Operation and Low Maintenance

Designed for operator ease, this manual system requires no electrical power, eliminating typical maintenance concerns. It can be operated by manual push/pull with the potential for mechanized towing adaptation, providing smooth, low-noise movement at speeds up to 15 meters per minute, entirely determined by operator pace.

Ideal for Industrial Material Handling

Perfect for assembly lines, material transfer, and automotive environments, the system's modularity supports tailored installation and expansion. On-site assembly and commissioning are available, guaranteeing seamless integration with existing workflows and fostering operational efficiency.

FAQ's of Manual Tow LINE Floor Conveyor System:

Q: How is the Manual Tow LINE Floor Conveyor System assembled and installed?

A: The system is supplied in modular sections, facilitating straightforward on-site assembly. Our technical team offers installation and commissioning support, ensuring precise alignment and seamless operation on your factory floor.

Q: What types of industries benefit most from this conveyor system?

A: The conveyor is ideal for assembly lines, automotive manufacturing, and general material transfer applications within indoor industrial environments that demand robust, adaptable, and reliable material movement solutions.

Q: When should I opt for manual versus mechanized towing methods?

A: Manual push/pull operation is suitable for shorter lines or when flexibility and simplicity are priorities. Mechanized towing adaptations can be installed for longer distances or higher throughput, providing operational flexibility as your process evolves.

Q: Where can the system be customized for unique operational needs?

A: Customization options include platform size and thickness, rail section lengths, load capacity, color, and overall system configuration, all tailored during the design phase to match your specific application requirements and shop layout.

Q: What is the process for trolley leveling on uneven floors?

A: Each trolley comes with built-in leveling supports. Operators can easily adjust these supports to ensure the platform remains stable and level, maintaining material safety and operational efficiency across uneven surfaces.

Q: How does the low noise level benefit my production environment?

A: The system's low-noise design minimizes workspace distractions and enhances overall safety and comfort for operators, contributing to a more productive and less stressful working environment.
