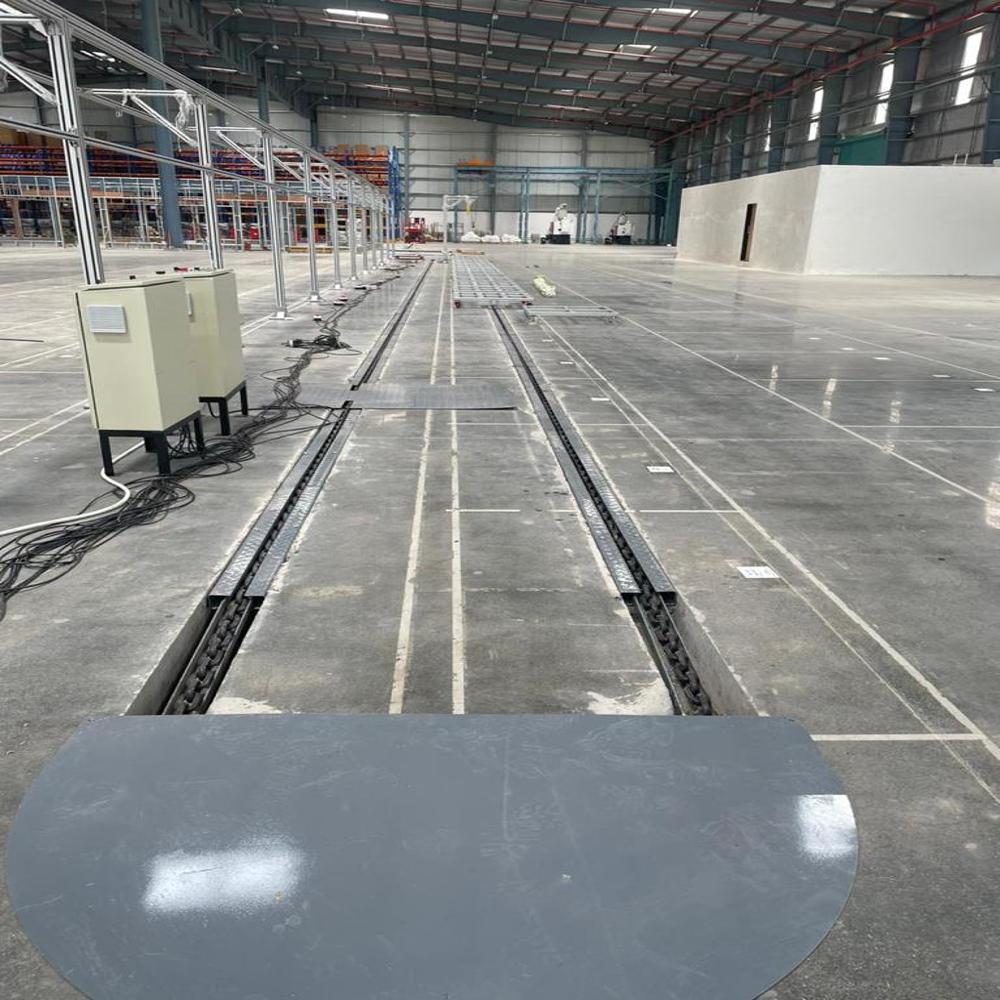

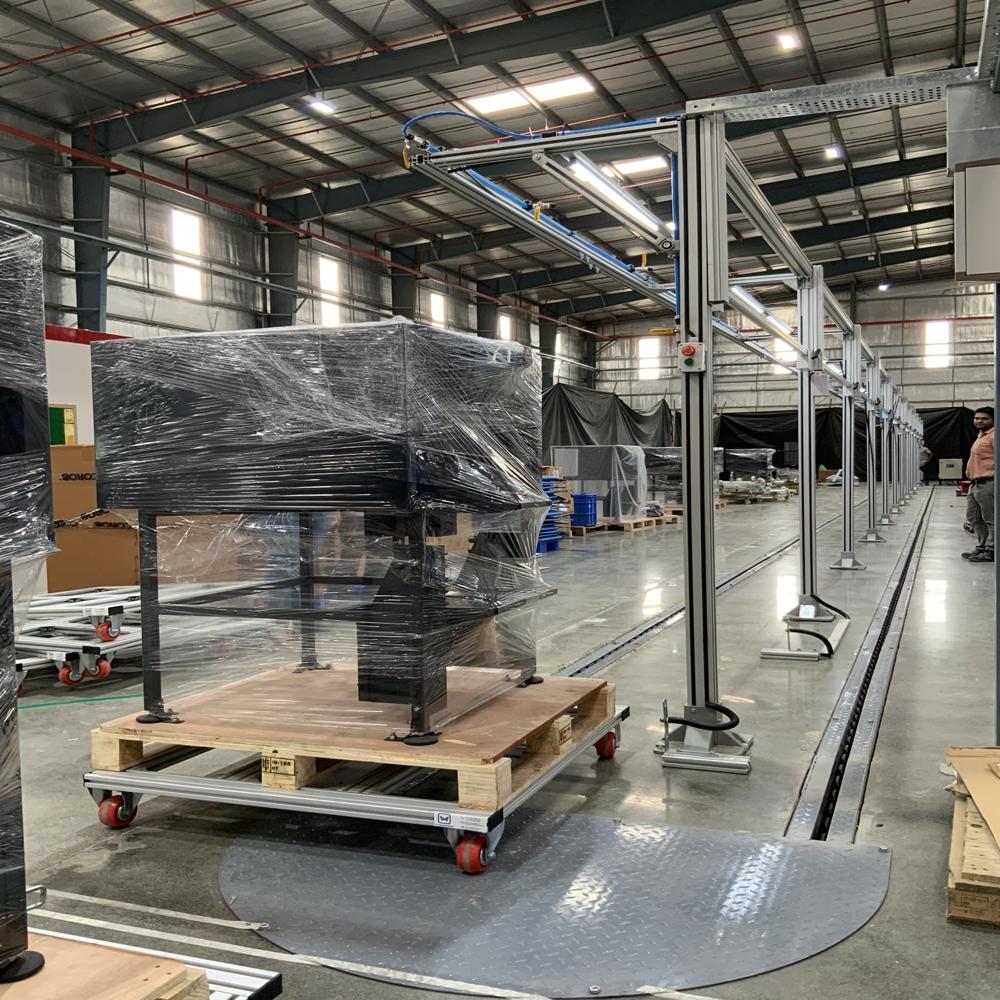

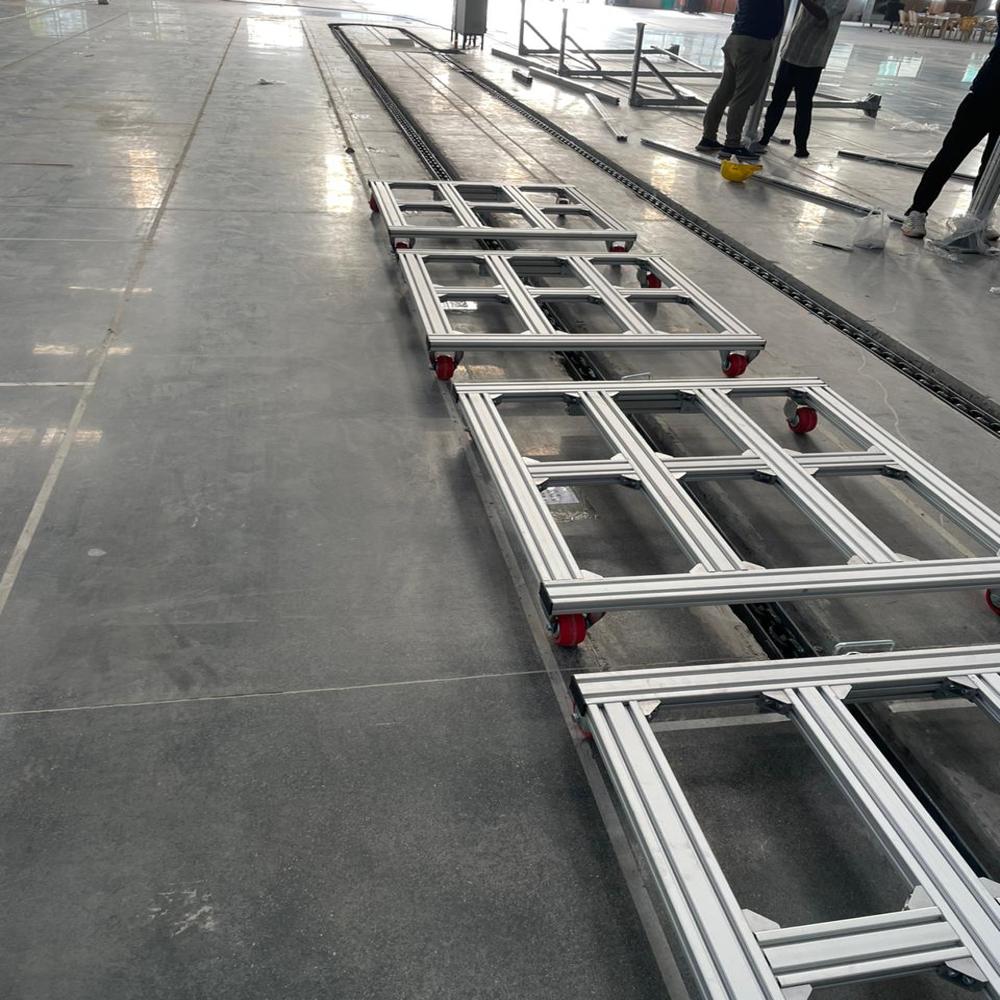

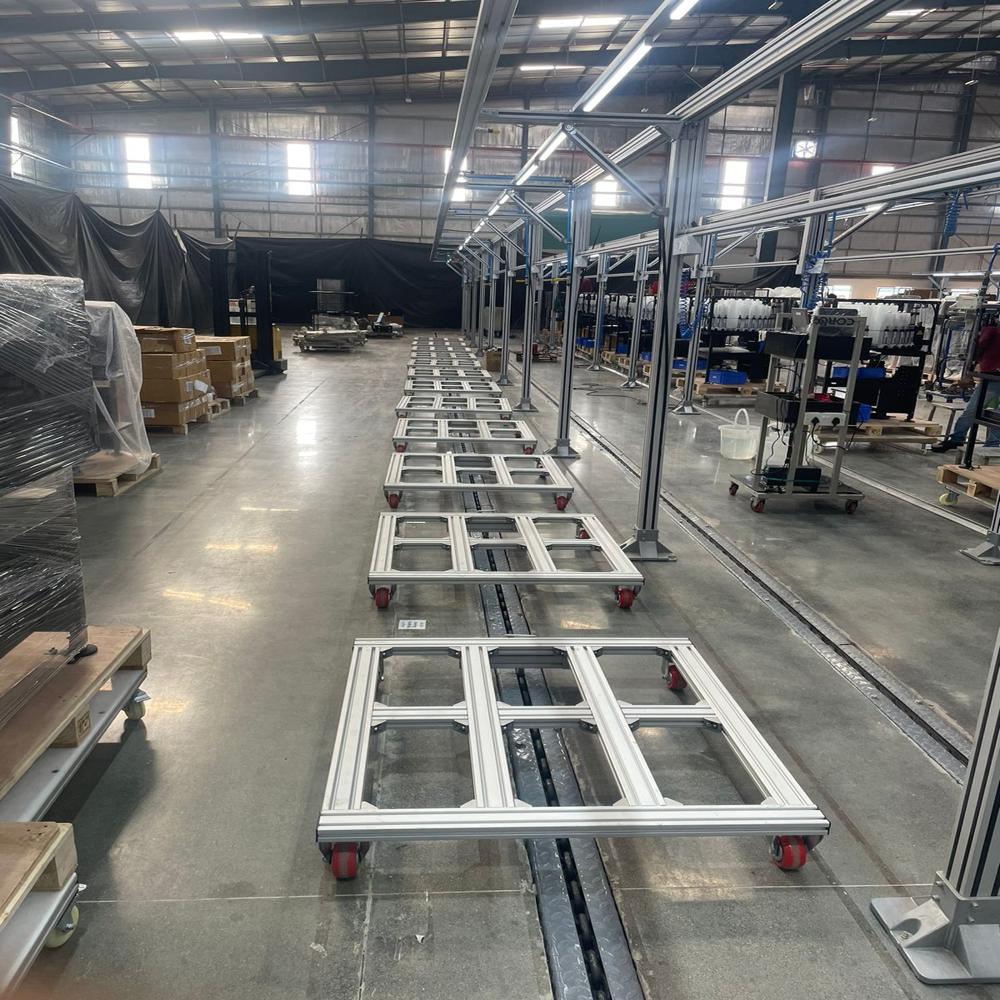

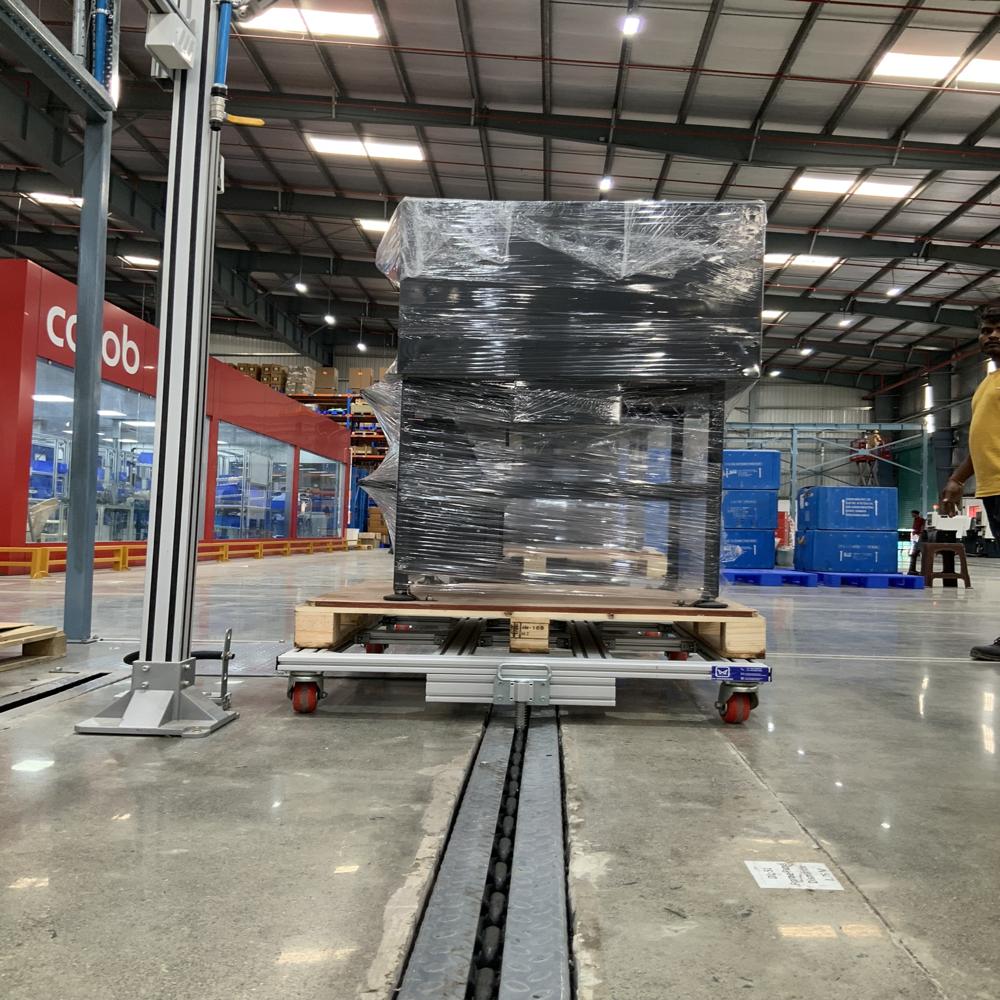

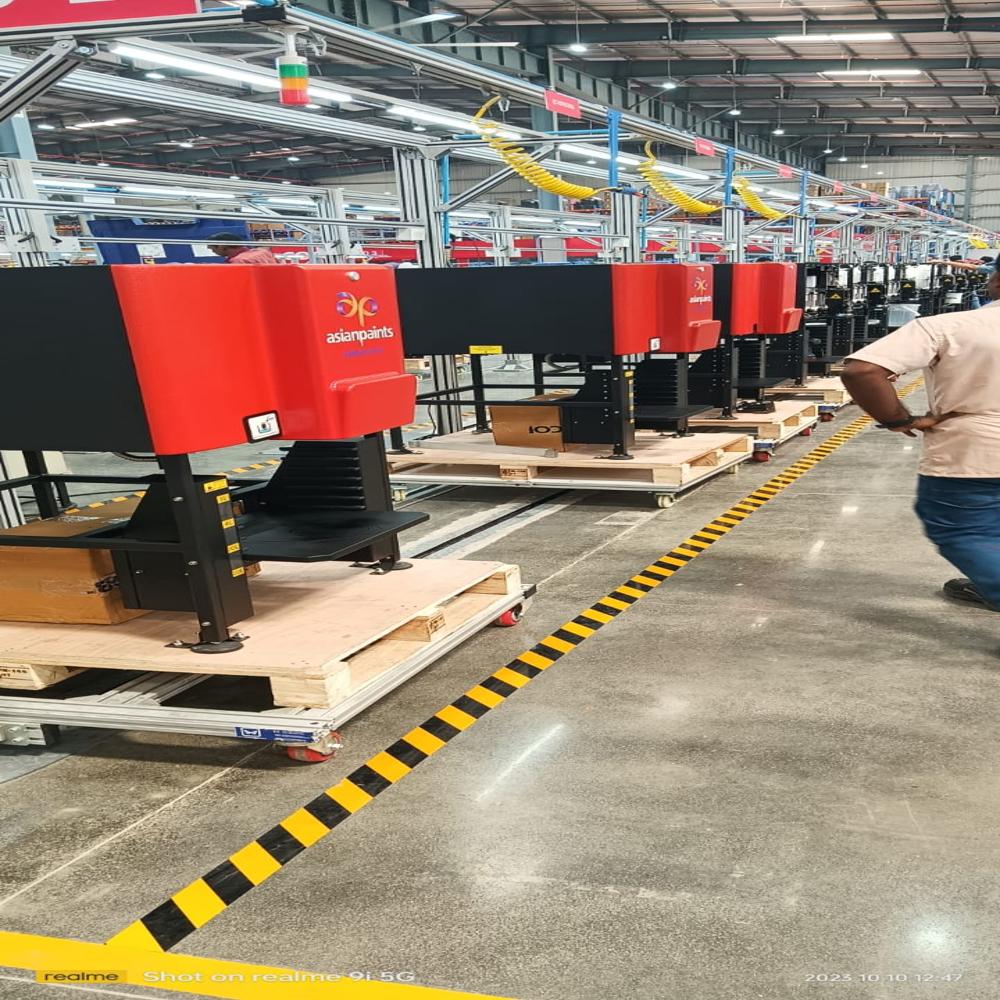

TWO LINE FLOOR CONVEYOR SYSTEM

TWO LINE FLOOR CONVEYOR SYSTEM Specification

Features
Low Profile, Integrated Motor Drive, Twin Track, Customizable Length

Surface Finish
Powder Coated/Industrial Paint Finish

Belt Type
Not Applicable - Chain Based

Power Source
Electric Motor Drive

Thickness
8-12 mm (track cover plates)

Material
Mild Steel, Powder Coated & Galvanized Options

Type
Floor-mounted twin chain conveyor system

Structure
Steel frame with integrated chain track

Belt Conveyor
Not Used, uses chain drive

Roller Conveyor
Not Used

Vertical Conveyor
Not Included

Resistant Feature
Corrosion Resistant, Heavy-duty design

Load Capacity
1000-2000 kg per line (customizable)

Voltage
415V AC, 3 Phase

Power
2-5 HP per drive unit

Speed
6-18 m/min (adjustable)

Usage & Applications
Automobile Assembly Lines, Industrial Manufacturing, Warehouse Material Handling

Noise Level
Below 75 dB(A)

Installation Type
Recessed In-floor Design

Chain Type
Forged Link Chain with High Wear Resistance

Safety Features
Emergency Stop, Protective Covers, Limit Switches

Ambient Operating Temp.
-10C to +55C

Customization
Length, Width, Speed and Layout as per requirement

Control System
PLC-Based Control Panel

Drive Arrangement
End Drive/Intermediate Drive Available

Track Layout
Straight and Optional Curved Configurations

Maintenance
Easy Access for Service & Cleaning

TWO LINE FLOOR CONVEYOR SYSTEM Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cheque

Supply Ability
1 Number Per Month

Delivery Time
1

Packaging Details
WRAPPING & BUBBLE WRAPPING

Main Domestic Market
All India

Certifications
ALL CERTIFICATIONS

TWO LINE FLOOR CONVEYOR SYSTEM About

We are a leading manufacturer and supplier of Two Line Floor Conveyor Systems, designed for efficient and continuous material handling in industrial applications. The system features two parallel conveyor lines that enable smooth, synchronized movement of products, improving production efficiency and reducing manual handling. Manufactured using high-quality materials, our conveyor system offers excellent durability, reliable performance, and low maintenance.

Ideal for assembly lines, automotive industries, packaging units, engineering industries, warehouses, and manufacturing plants, this conveyor system can be customized to meet specific production requirements.

Features:

Heavy-duty and robust construction
Smooth and continuous operation
Low maintenance and long service life
Energy-efficient performance
Customizable length and load capacity
Corrosion-resistant finish
Easy installation and operation

Applications:
Assembly Lines, Automotive Industry, Packaging Industry, Engineering Units, Warehouses, Manufacturing Plants, Material Handling Systems, and Production Facilities.

Advanced PLC-Based Automation

The conveyor system is governed by a sophisticated PLC-based control panel, enabling precise and automated management of operations. This ensures seamless integration with your facility's processes and minimizes manual intervention, enhancing efficiency and reducing operational errors. Various interlocks and safety protocols can be programmed to suit specific industry requirements.

Heavy-Duty Chain for Maximum Durability

Utilizing a forged link chain, the conveyor system is designed for exceptional wear resistance and long service life. The rugged chain structure handles heavy loads with ease, operating reliably under continuous industrial use. Regular maintenance is straightforward, thanks to easy-access features built into the system's design.

Customizable to Your Application

Every installation can be tailored in terms of length, width, speed, and overall layout, ensuring the conveyor fits your unique facility design. Whether you need a straight track or curved sections, this system is engineered for flexibility. Load capacity is similarly adaptable, making it a versatile solution for varied material handling needs.

FAQ's of TWO LINE FLOOR CONVEYOR SYSTEM:

Q: How does the PLC-based control panel enhance the operation of the Two Line Floor Conveyor System?

A: The PLC-based control panel allows for automated and programmable control of the conveyor, offering precise operation, integration with other equipment, and enhanced safety monitoring. This reduces manual intervention, improves efficiency, and enables custom operation modes to match specific application requirements.

Q: What maintenance procedures are required for optimal performance and service life?

A: Routine maintenance involves periodic cleaning, lubrication of the forged link chains, inspection of wear components, and checking all safety devices. Thanks to the easy access design, servicing and cleaning the conveyor system is straightforward and can be conducted with minimal downtime.

Q: When is it advantageous to choose a recessed in-floor conveyor system over above-ground alternatives?

A: A recessed in-floor design is ideal when you require a low-profile conveyor that allows unobstructed workspace and easier material flow in high-traffic areas, such as automotive assembly lines or warehouses where space optimization is critical.

Q: Where can the Two Line Floor Conveyor System be installed, and what are its typical applications?

A: This conveyor system is suitable for installation in industrial and commercial environments, including automotive assembly plants, manufacturing units, and warehouse material handling locations. Its robust design and customizable features make it versatile for heavy-duty applications.

Q: What safety features are included in this conveyor system?

A: Enhanced safety is ensured through the implementation of emergency stop buttons, protective covers over moving parts, and limit switches that monitor system operation, reducing risk and improving workplace safety.

Q: How can the conveyor system be customized to fit specific operational requirements?

A: The system's length, width, speed, load capacity, and track layout (straight or curved) can all be customized. Additionally, finish options and drive arrangements are available to ensure compatibility with a wide range of industrial processes.

Q: What benefits does the chain-driven system offer compared to belt or roller conveyors?

A: A chain-driven system provides superior strength, durability, and resistance to heavy loads and harsh environments. It's less susceptible to stretching and slipping, thereby offering reliable performance and extended service life even with heavy or frequent use.
